Assemblies

3-Flange Panels

Three-flange wall and transition panels.

2-1-WWLL

3 Flange Panel, return flanges only on side flanges. Width ranges from 6" to 42" on 6" increments. Length ranges from 12" to 114" on 6" incr…

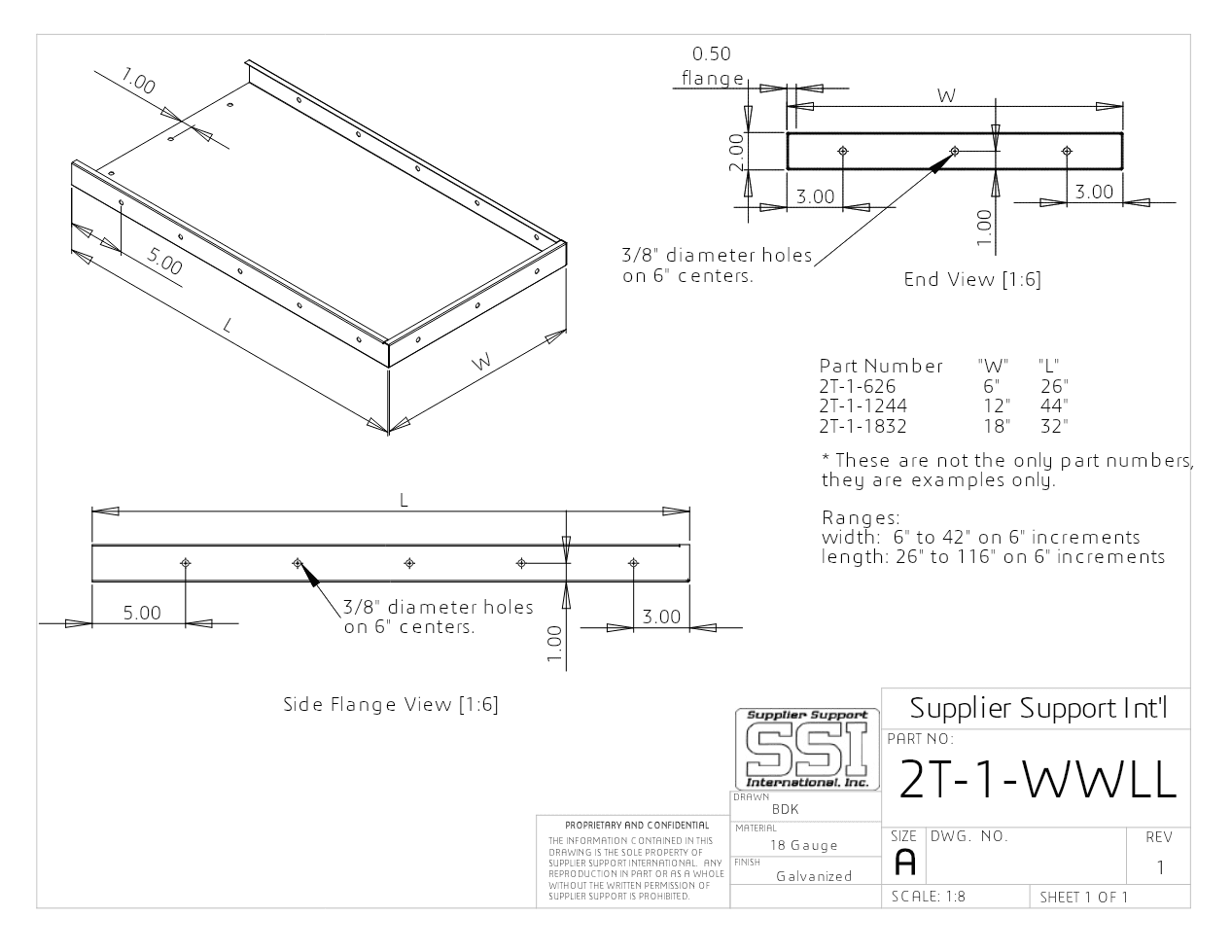

2T-1-WWLL

3 flange panel with 2" extension on open end, return flanges only on sides. Holes on side flanges start 3" from end flanges and end 5" from …

2TN-1-WWLL

3 flange notched panel. Same as 2T-1-WWLL with last 2" of flanges notched so open end can fit between panels.
