Assemblies

2-Flange Panels

Basic and specialty 2-flange panels (WW width × LL length).

2-WWLL

2 Flange panel (also known as "basic panel") 2" flanges, .7" reuturn flanges, 2 open ends. Width ranges from 6" to 42" on 6" increments. Len…

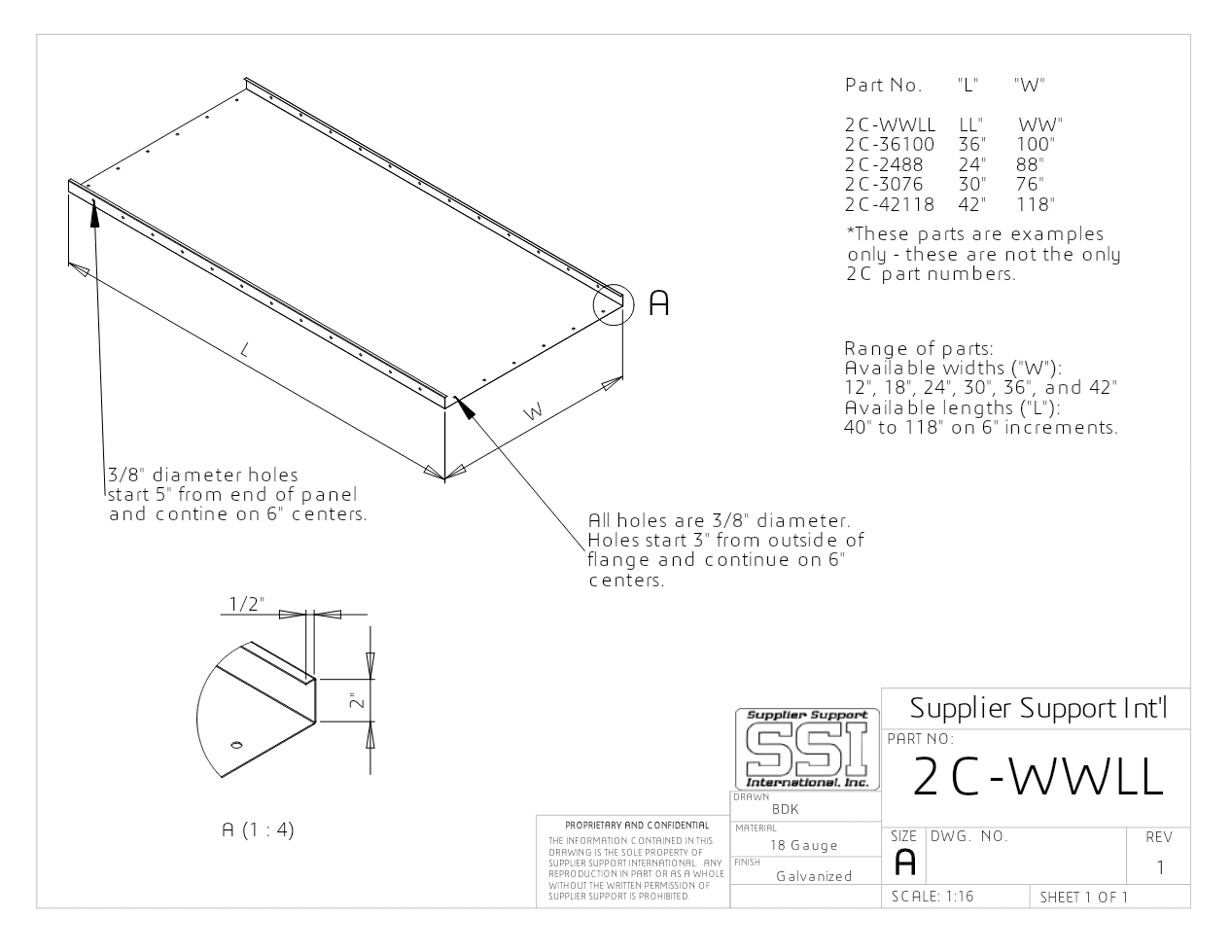

2C-WWLL

2 Flange Ceiling panel. Ceiling panels are 4" longer than standard panels, which will allow for side walls to sit under the ceiling panel an…

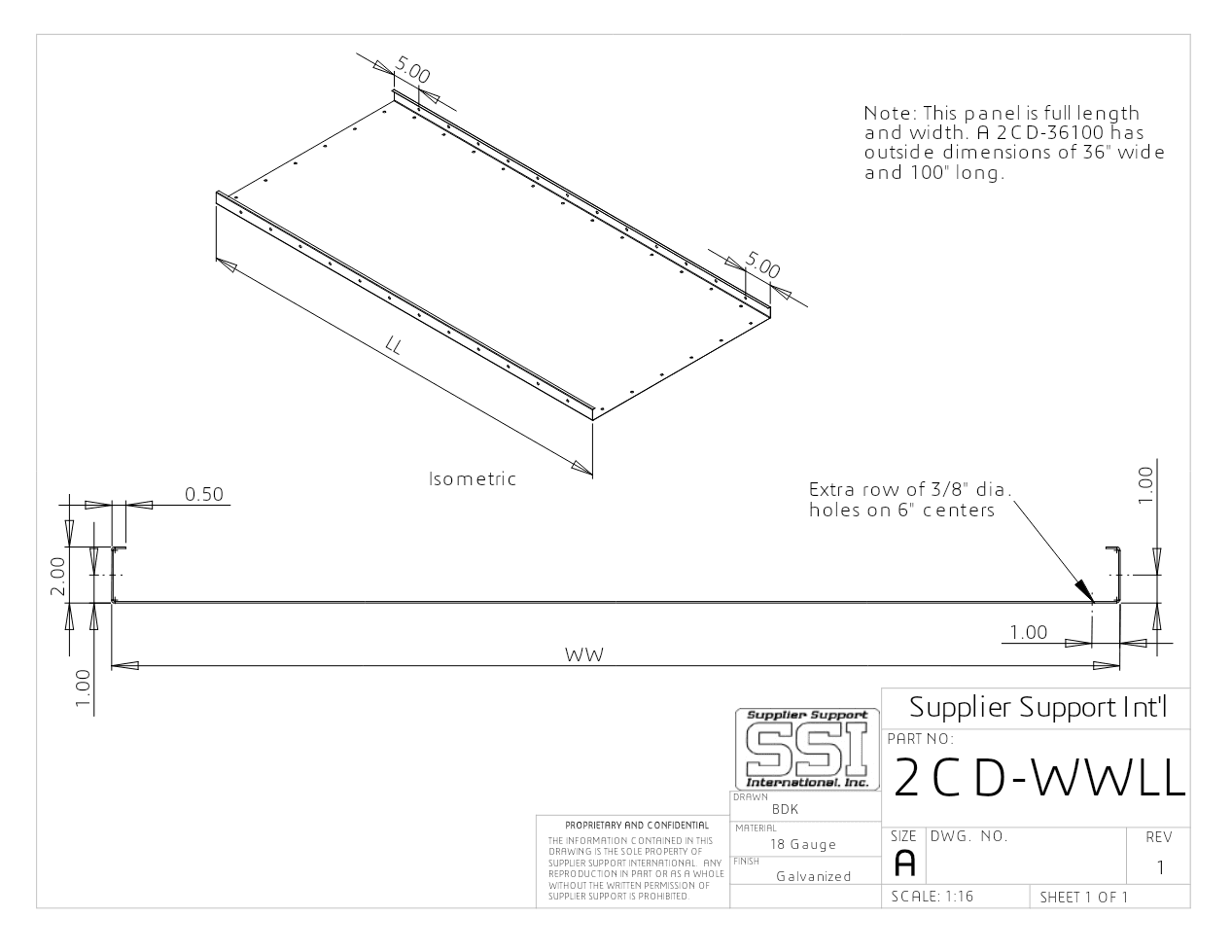

2CD-WWLL

Same as a 2C-WWLL ceiling panel with a downpunched set of holes through the skin, 1" away from one of the side flanges. Part range would be …

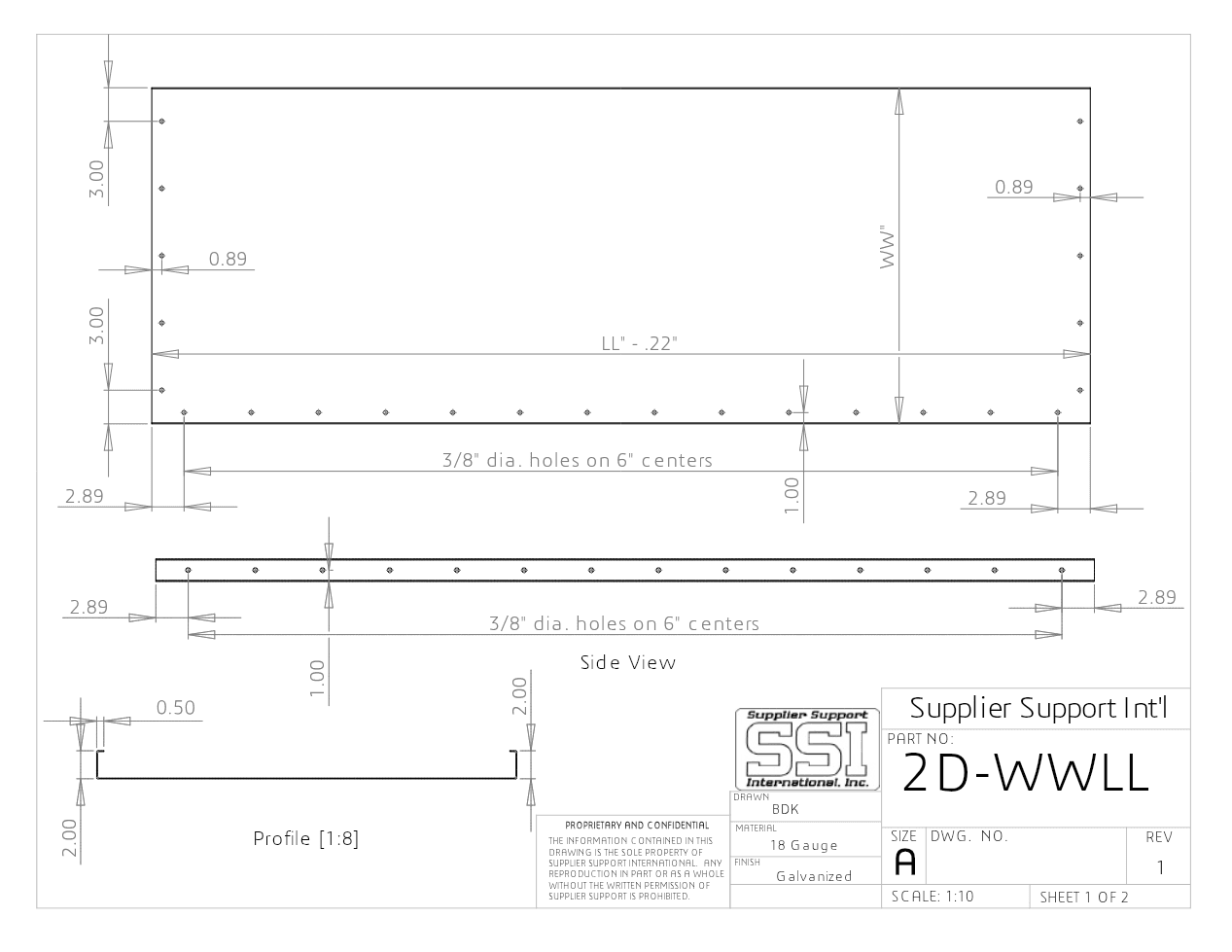

2D-WWLL

Basic panel with one row of holes through skin 1" away from one of the flanges. Size ranges the same as 2-WWLL basic panel.

2T-WWLL

2 Flange exhaust ceiling panel, same as 2-WWLL with 2" extension on one end. WW could range from 6" to 42" on 6" increments. LL could range …

2TN-WWLL

Same as 2T-WWLL with notched flanges on the 2" extension.
