Assemblies

Exhaust Panels

Panels with exhaust openings for fan mounting.

2CE-WWLL-DD

2 Flange exhaust panel with 2" extension on each side - Length is even foot increments +4"; same as a 2C-WWLL with exhaust opening. Panel wi…

2E-WWLL-DD

Same as basic panel with exhaust opening centered on panel skin. (8) 3/8" dia. holes around exhaust opening for mounting fan. Part can range…

2E-WWLL-DD-NH

Same as 2E-WWLL-DD without holes around the exhaust opening.

2TE-1-WWLL-DD

3 Flange Exhaust panel with 2" extention on length. Comes make with 14 gauge material, but this can be changed by adding a "-GA" suffix wher…

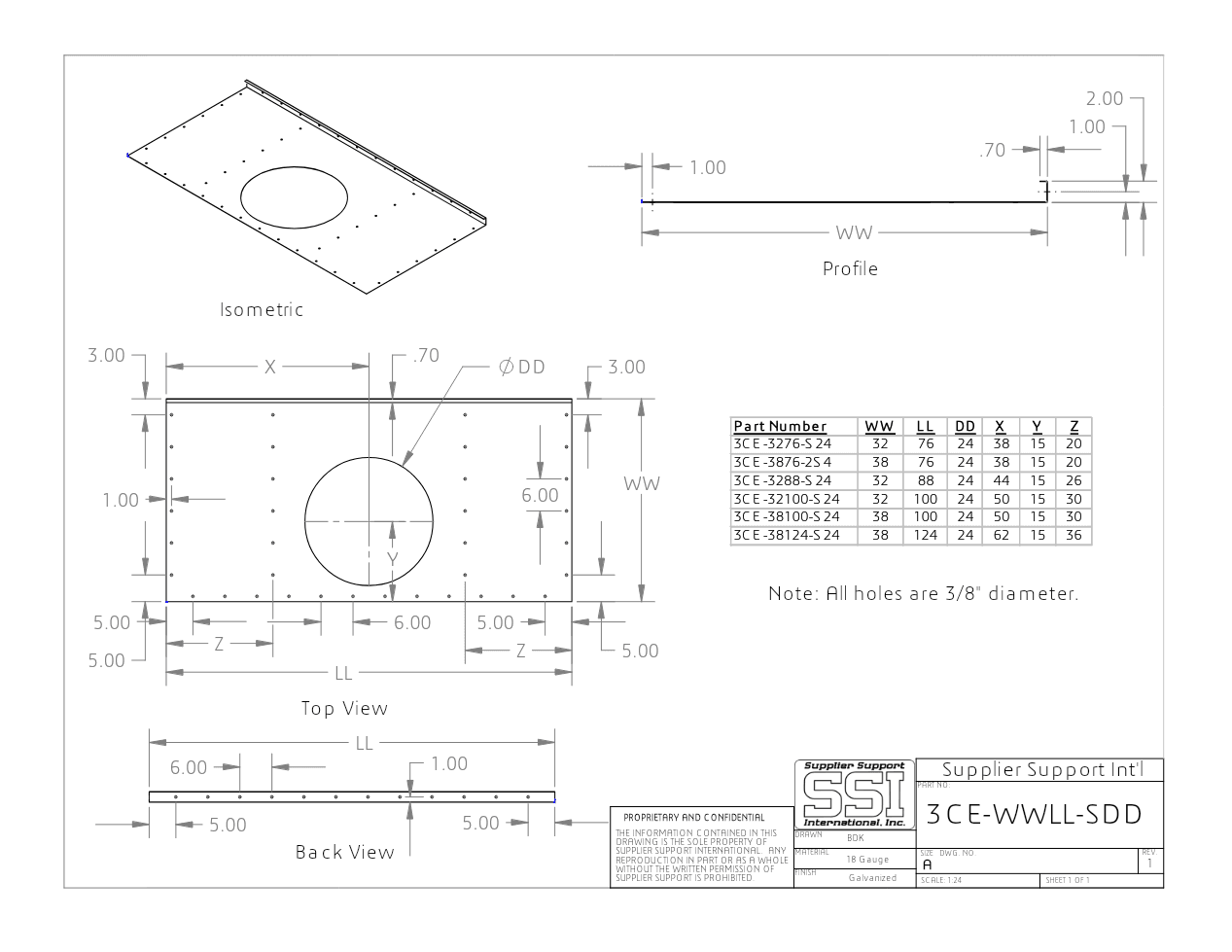

3CE-WWLL-SDD

3 Flange exhaust panel, similar to 3E-WWLL-SDD except the LL dimension is that of a ceiling panel (even foot increments +4" because of a 2" …

3E-WWLL-SDD

Single flange exhaust panel. Panel width sarts from the flange and has 2" extention to hang over back wall of exhaust chamber. Panel lengths…
