Assemblies

Angles

Corner and specialty angles — LL length families on 6" increments.

1L-135-LL

Underbent 1L-LL (2" x 2") angle - profile of 135�. There are 1/2" slotted holes on 6" centers on each flange. The "LL" range can go from 6" …

1L-45-LL

Overbent 1L-LL (2" x 2") angle - has profile of 45�. Both flanges have 1/2" slotted holes on 6" centers. The "LL" range is from 6" to 120" w…

1L-LL

2" x 2" angle, made of 14 gauge galvanized material - with 3/8" dia. holes on 6" centers centered on each flange. The range for "LL" is from…

1L-LL-3

This is a 1L-LL that has been triple punched (holes on 2" centers). The "LL" range for this part is 6" to 120"

1L-LL-GA

1L style angle (2" x 2") made of "GA" gauge material. Can be 20, 18, 16, (14 is default), or 11 gauge. On the 11 gauge angles, holes will be…

1L-LL-NH

This is the same as a 1L-LL (2" x 2") angle with NO HOLES. The "LL" range can be from 6" to 120".

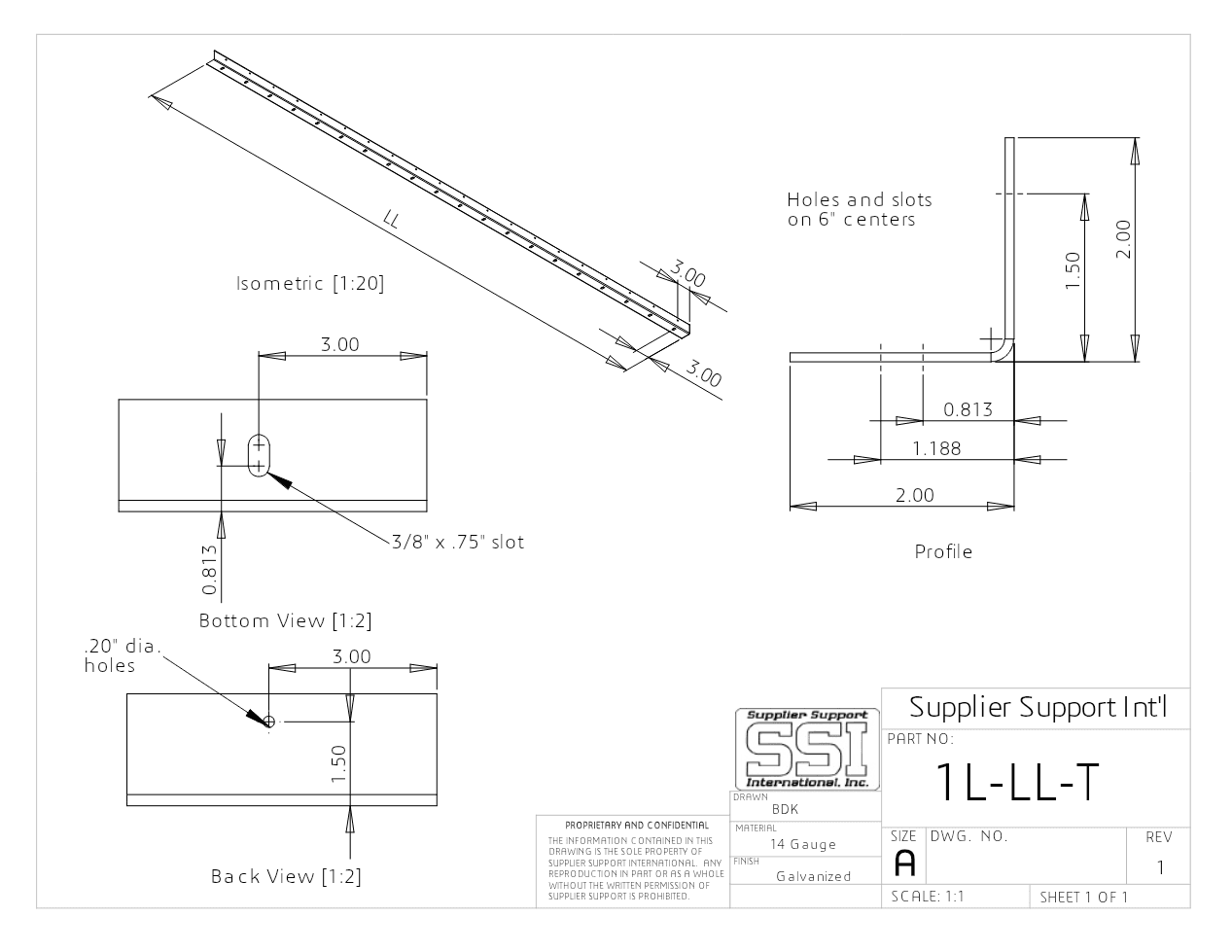

1L-LL-T

This is a 1L-LL angle with a different set of holes punched in the flanges. One flange has 3/8" dia. x 3/4" slots; the other has 1/4" dia. h…

1L-LL-TT

This is a 1L-LL (2" x 2") angle with 1/4" holes instead of 3/8" holes. Typically used for flashing. The "LL" can range from 6" to 120" with …

1LW-LL

This is a W" x W" angle that is LL" long. Holes are 3/8" dia. centered on each flange. The W range can be from 1" to 6", and the LL range ca…

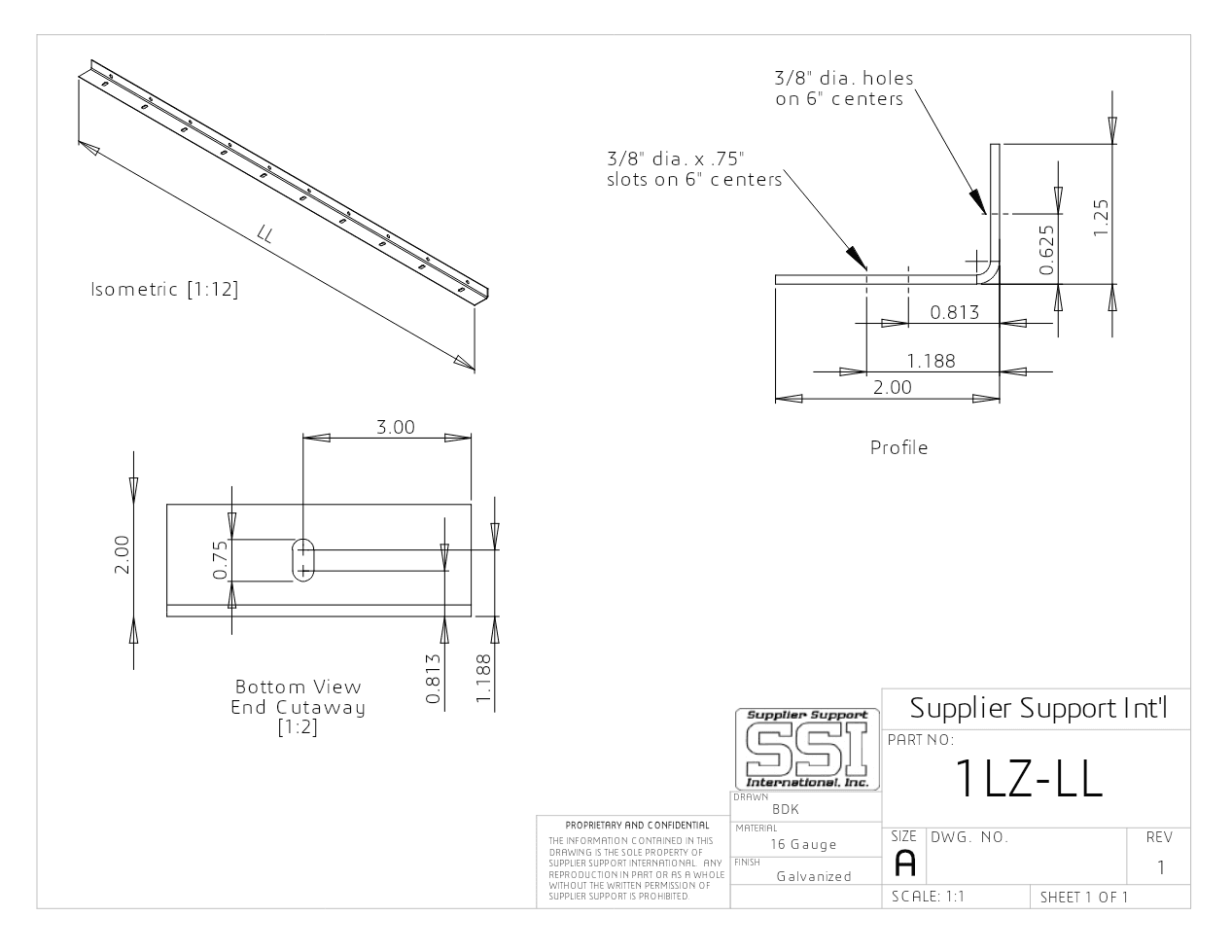

1LZ-LL
